Tamiya 1/10 RC Concept Chassis (M-08)

A GR8 M-Chassis Addition

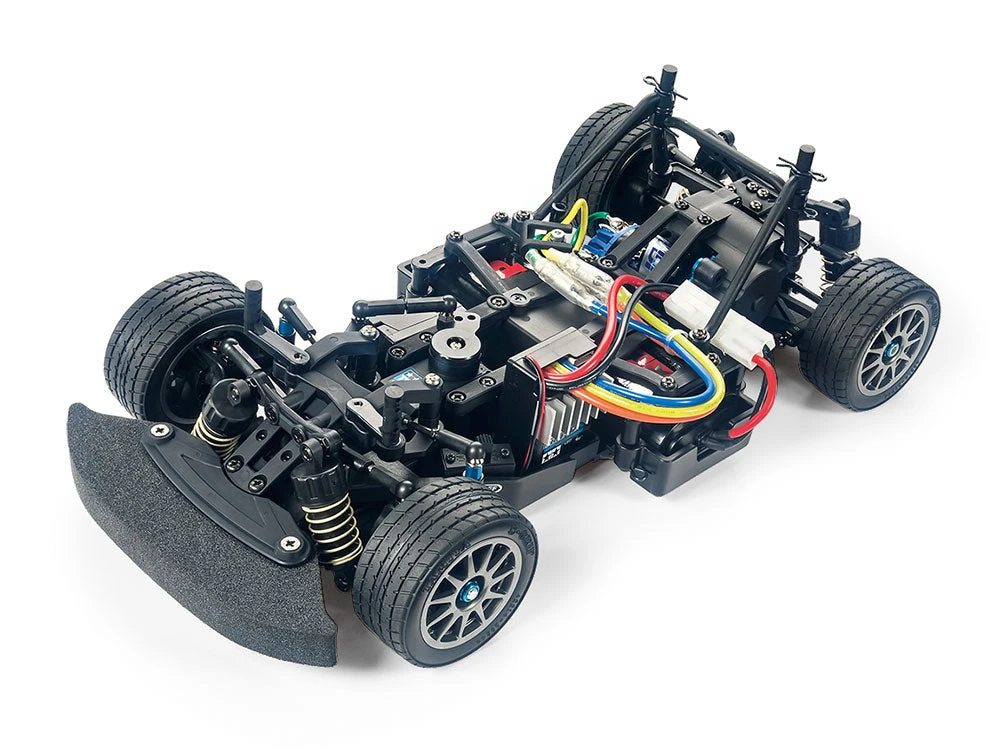

This assembly kit creates the M-08 Concept high performance R/C chassis, which employs a midship motor, rear-wheel drive layout for superior rear traction, plus a main frame split into front and rear sections that allow 3 different wheelbases. Smooth 4-wheel double wishbone suspension utilizes CVA oil dampers and long suspension arms for a ground hugging drive, and the front caster with a pairing of 0-degree suspension mount and 2-degree hub carrier. An oil-filled gear differential provides smooth drive, while motor and gearbox are positioned to ensure powerful drive under acceleration.

Featured Components
★M-07 Concept design long suspension arms ★Oil-filled gear differential ★Universal drive shafts ★Turnbuckle upper arms ★Full ball bearings ★Hi-torque servo saver (black)

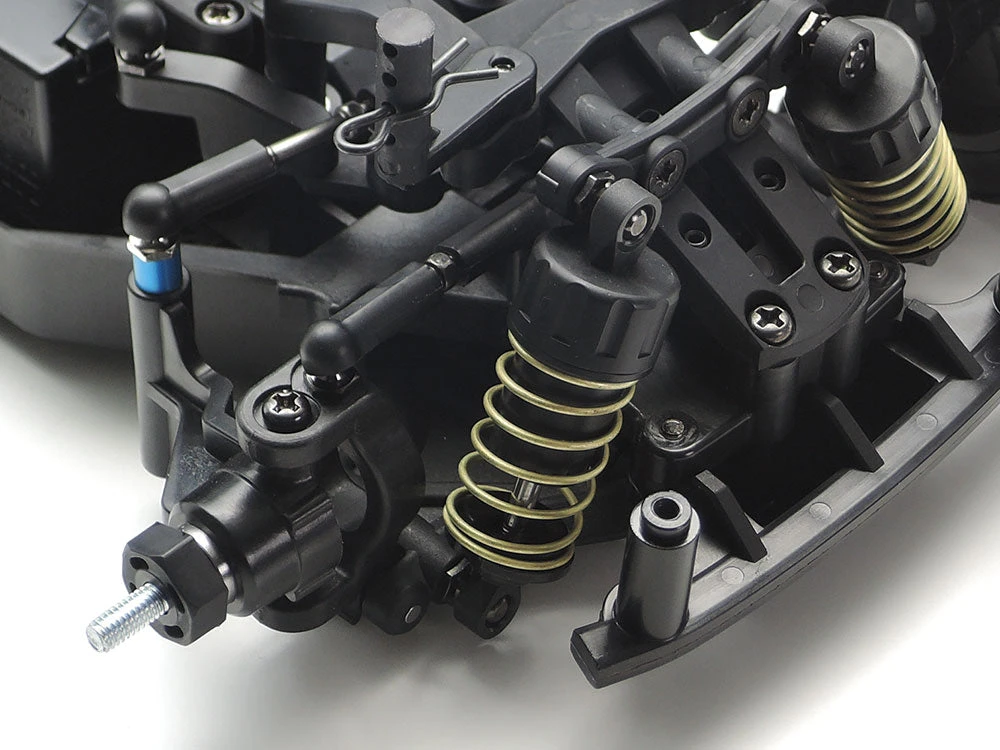

★Front caster angle is set by 0-degree suspension mount and 2-degree hub carrier components.

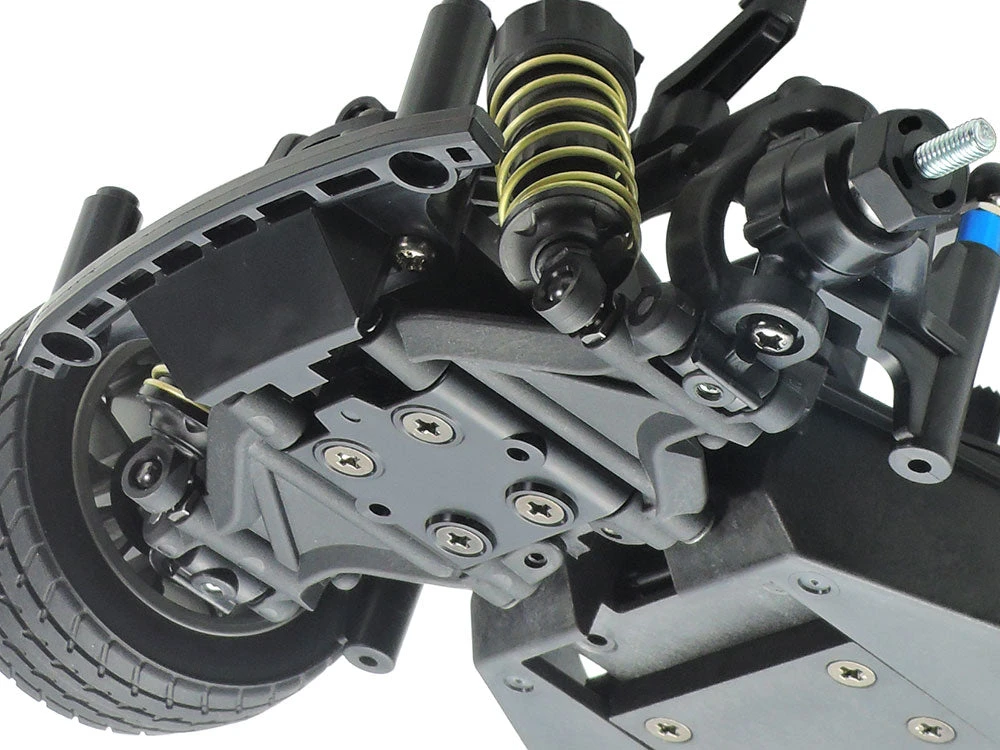

★Long suspension arms give a ground hugging drive, and inherit the M-07 Concept design.
★Features a forward position for the low-profile servo, plus a hi-torque servo saver included.
★The midship motor is positioned to as to provide valuable weight to the driven rear wheels.

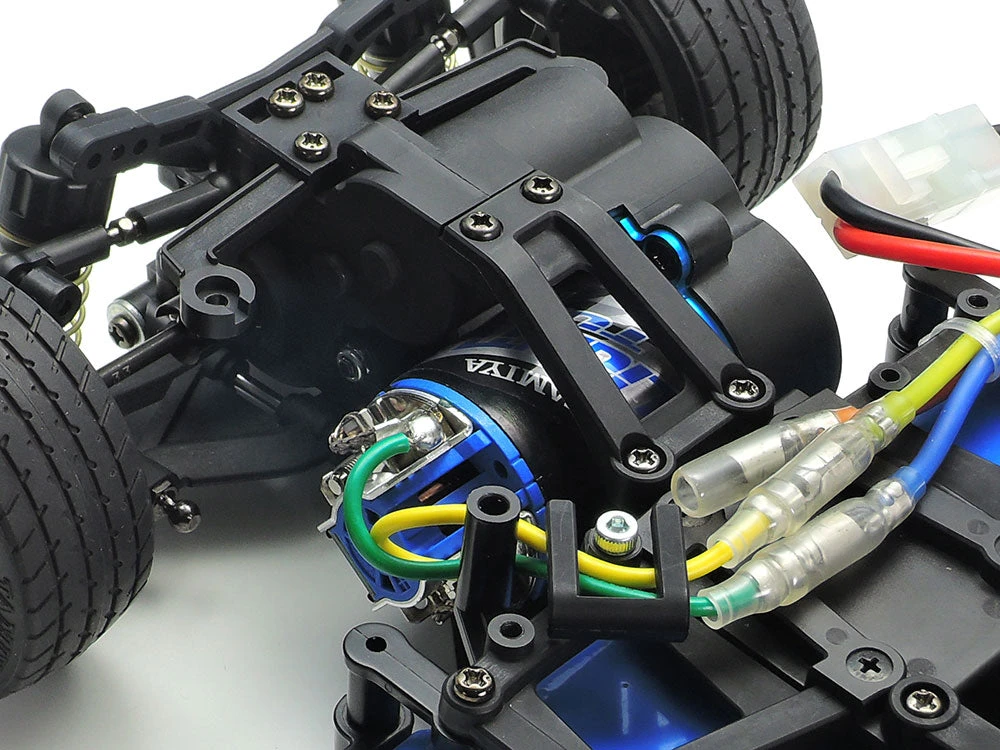

★A 4-gear layout in the drivetrain ensures that inverse torque from the motor pushes down rear wheels.
★Separate front and rear sections of the main frame allow a choice of three different wheelbases.

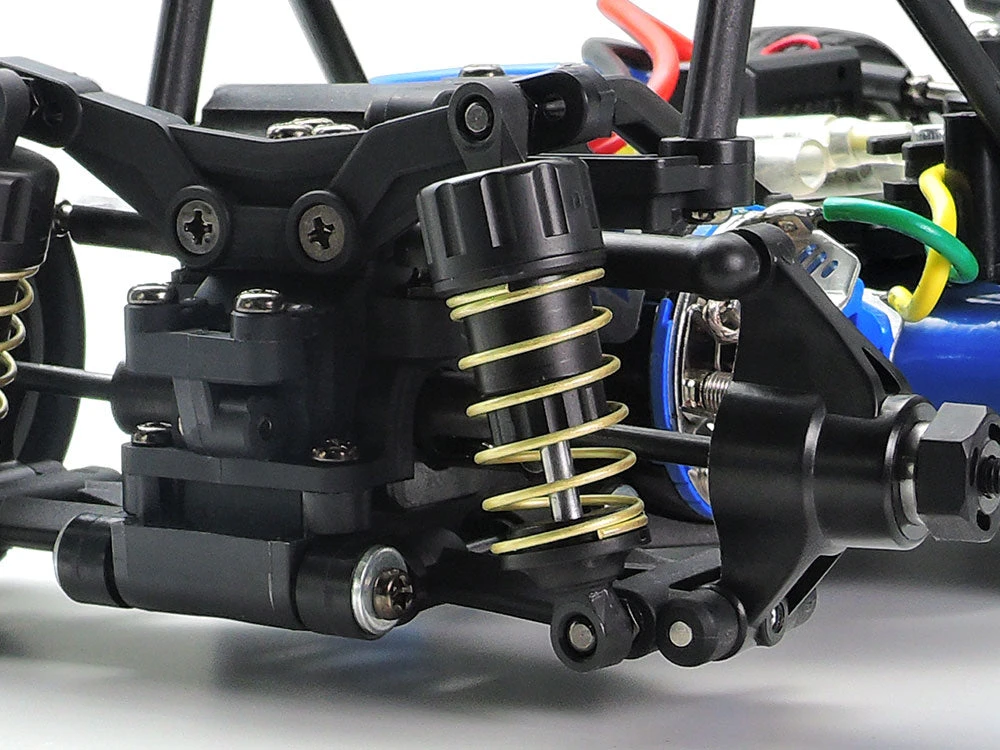

★Use spacers in the rear suspension setup to make fine adjustments to the chassis’ toe angle.

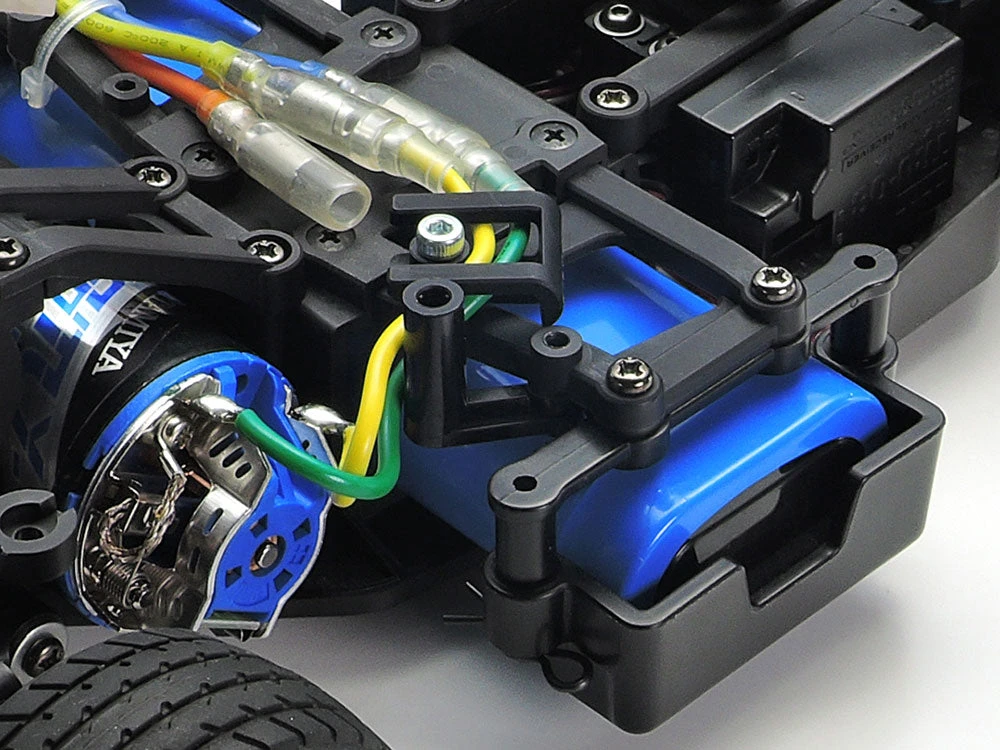

★This chassis is compatible with square shaped battery packs such as the 7.2V Racing Pack.

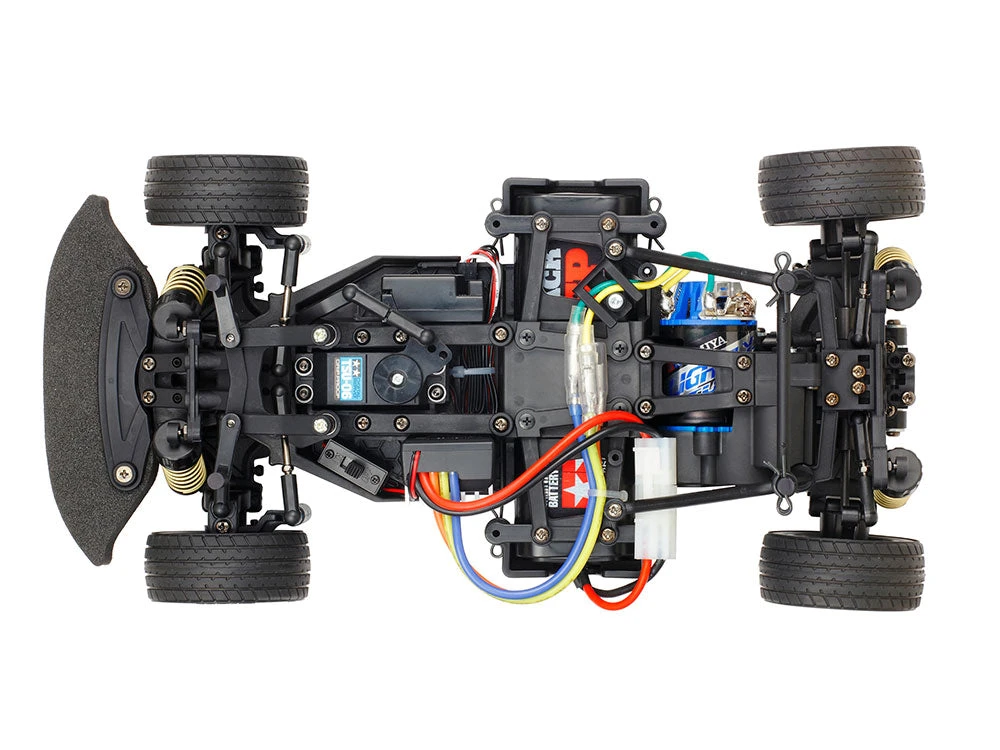

★An overhead view shows off the perfectly-balanced form of the M-08 Concept and its compact RWD layout.

Separately Required Items
★M-Chassis-compatible body ★Type 540 motor ★Tires ★2-Channel R/C System w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery Pack & Charger
